Hard Guarding

MPSA designs customized mechanical guards with quality and durable materials including Bosch Rexroth’s aluminum framing and GSM’s powder-coated steel frames.

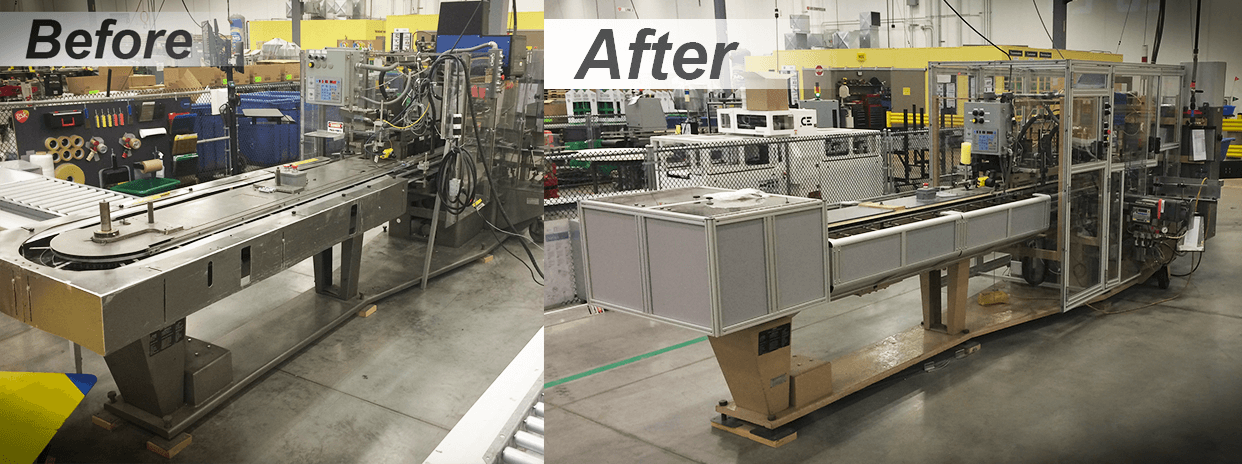

Cartoner Safeguarding Upgrade
  • Replaced AZ15 safety switches with Category 3 rated AZ16-12ZVRK safety switches.
  • Installed coded magnetic Category 3 safety switches on the carton feed area hinged door and on lift-up Lexan covers.
  • Added required push-button stations.
  • Upgraded safety control circuit to achieve Category 3 or PLd requirements.
  • Installed Lexan extension to the flip-down door with nut plate and space to eliminate reach-in hazard area.
  • Reduced crawl-under gap with Lexan door extension panels.
  • Added stainless filler panel under the conveyor.

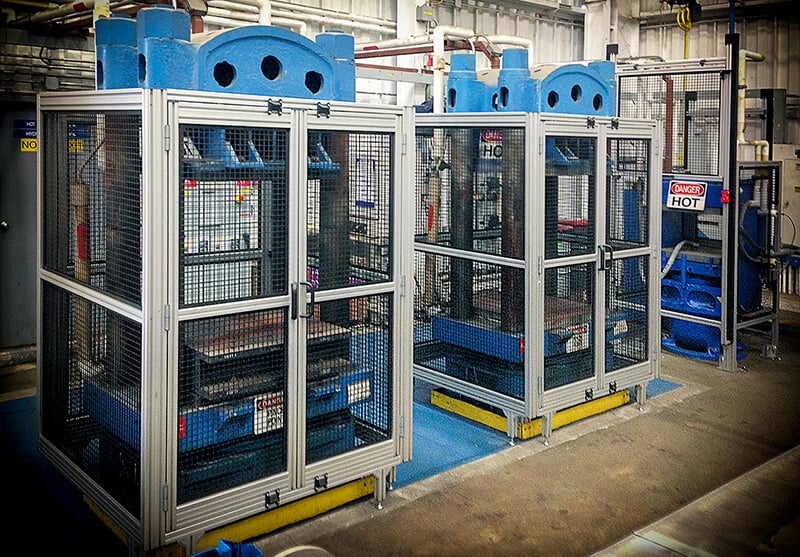

Hydraulic Press Brake Safety Enclosures
  • No-Operator-Access Guarding.
  • Multiple solenoid safety-interlock switches.
  • Category 3 safety controls.
  • Turnkey safety solutions fully integrated at the customer’s site.

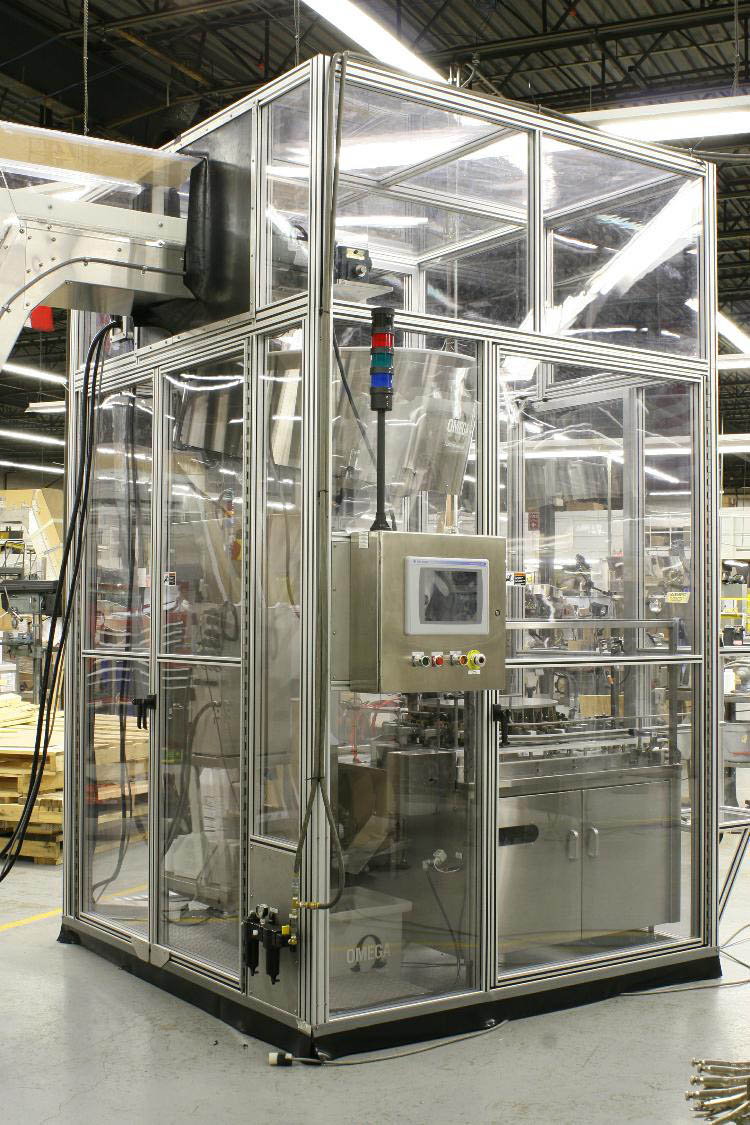

Sound Abatement Safety Enclosure
  • Modular framing with special T-slots designed for reduction of noise.
  • Implemented the No-Operator-Access design solution which was developed to reduce noise and maintain safety integrity.
  • Reduced the noise level to 80 dB from 92 dB
  • Category 3 safety controls with safety interlock switches on all doors.

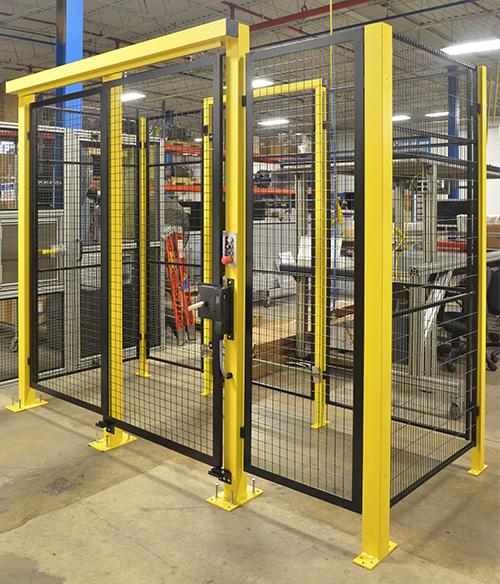

Perimeter Safety Barrier Guarding
  • Steel guarding for rugged environments.
  • Quick-connect assembly system reduces labor.
  • The uncommon assembly/disassembly tool complies with ISO 12100-2.
  • Integrated safety control is built into the door frame.
  • This safety enclosure follows ISO 12100-2 and the new RIA 15.06.2012 regulations.

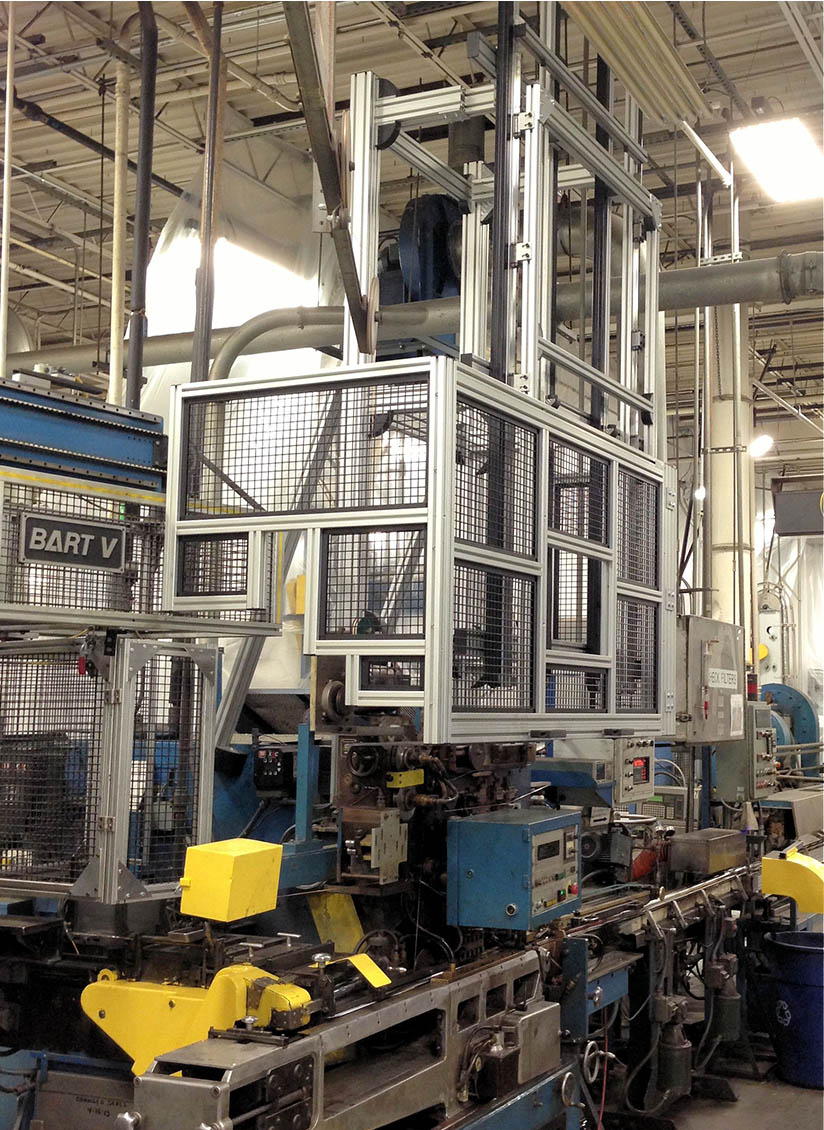

Large Counterbalance Guard
  • User-friendly safety enclosure with counter balance vertical lift door.
  • Utilizes heavy-duty linear runner blocks and ball rails for smooth movement.
  • Integrated special emergency stopping device to ensure complete control of the enclosure and to prevent it from drifting down.
  • Guard is directly mounted to the machine, so there are no guarding obstructions for maintenance access.
Machine Guard with Counterbalance
  • Accumulator station and guard.
  • Linear paper accumulation with lightweight counterbalance doors with integrated safety controls.
  • 120” linear pneumatic actuators
    for web control.
  • Counterbalance door design for close access.
  • Removable panels for maintenance access.

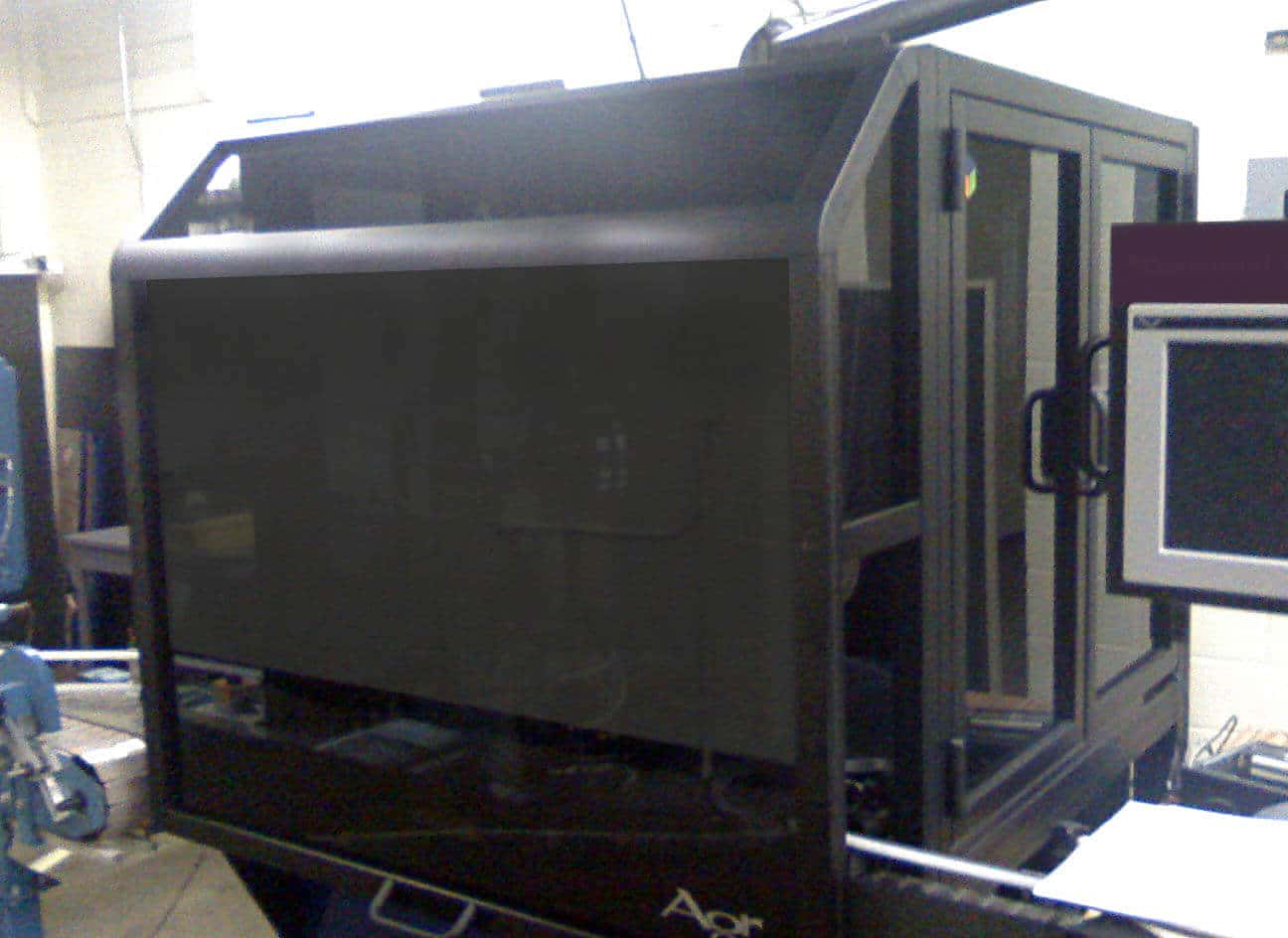

Customized Black Anodized Laser Enclosure
  • Enclosure ensures that the laser equipment is properly contained.
  • The front door is supported by gas shocks.
  • Safety interlock switches coupled with Category 4 safety circuit are integrated.

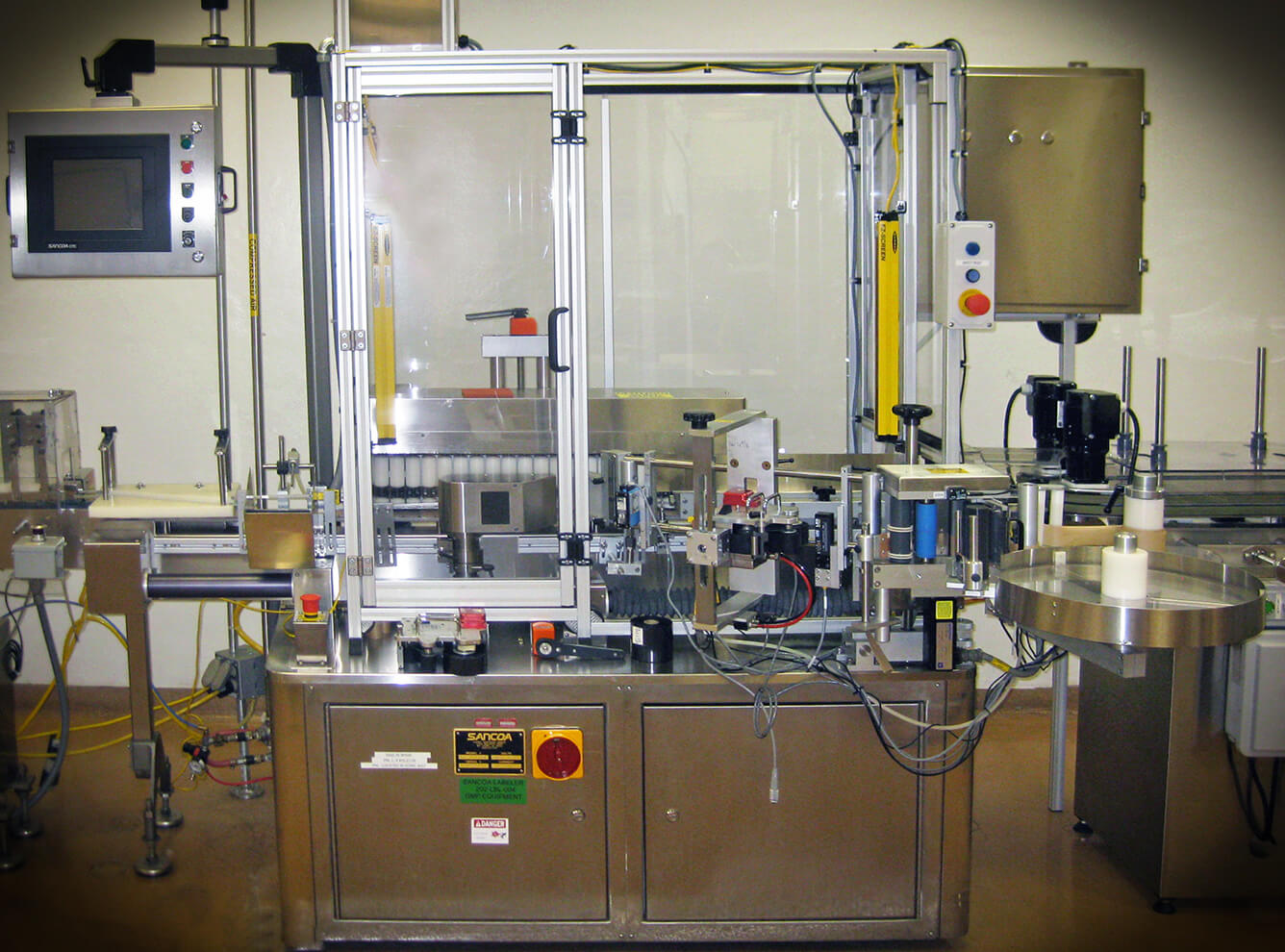

Sancoa Labeler
  • Guarding constructed of Bosch Rexroth aluminum structural framing.
  • Light curtains.
  • Schmersal safety non-contact safety switches.
  • STI G9SP safety controller.
